Console Parameters
Display: Full-color LCD display
Controls: 8 ¡Á faders, 1 ¡Á joystick,
18 ¡Á quick-response crystal buttons
Protocols: RS232, DMX512
Control Channels: 1 ¡Á RS232, DMX512
Power Input: 1 ¡Á 12VDC port, 1 ¡Á USB port
Dimensions: 38¡Á20¡Á4 cm, Weight: 3 kg
UWB System

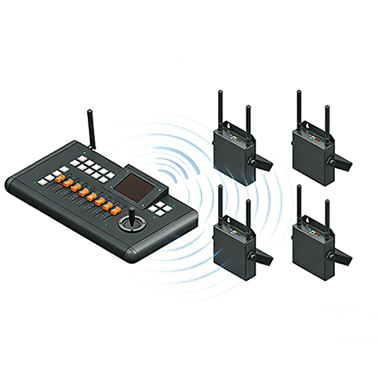

Composition: 1 ¡Á beacon, 4 ¡Á base stations
Positioning Technology: Imported UWB chip,
dual-module positioning for higher speed and
stability
Auxiliary Positioning: 10-axis angular velocity
detection, intelligent beacon attitude recognition
Processor: High-performance ARM series MCU
Software: Independently developed automatic
tracking technology
Positioning Range: 50m¡Á50m (small) / 200m¡Á200m
(large)
Features

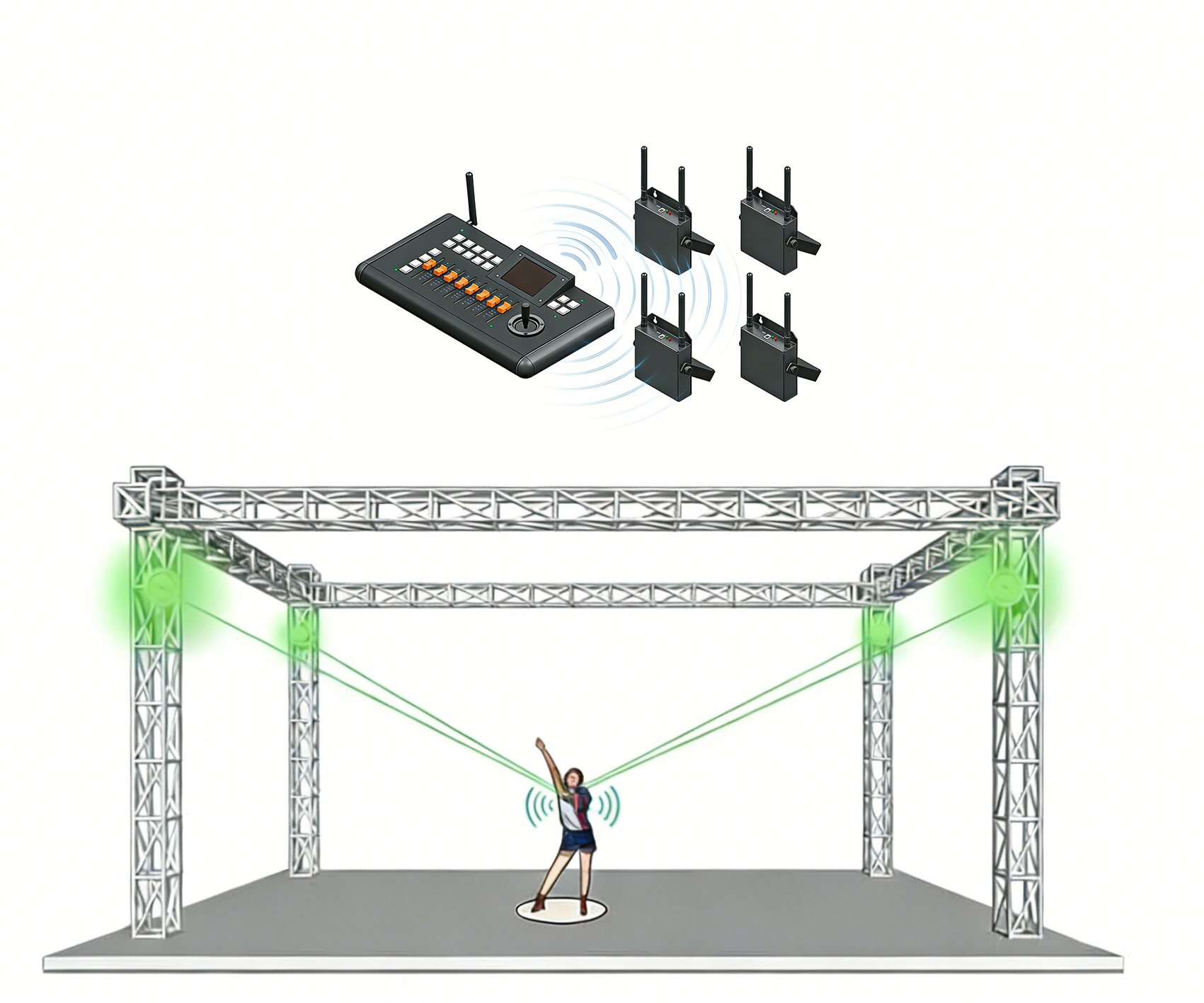

▶ Precise Tracking: Adopts advanced positioning
technology to track performers in real time, ensuring
lights follow accurately.
▶ Intelligent Control: Supports manual / automatic
mode switching and fast / slow tracking switching for
various scenes. Easy operation; all functions can be
set via console without an extra computer.
▶ Versatile Compatibility: Integrates with multiple
lighting control systems and works smoothly with
existing stage equipment.
▶ Main Functions: Automatic tracking, manual
tracking
Applications
Banquet halls, wedding venues, theaters, concert
halls, concerts, live events, award ceremonies,
fashion shows, conferences, TV program recording,
film and television shooting, etc.
